B65815E0000R049

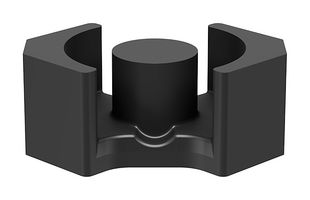

TRANSFORMER CORE, RM, N49, 57MM ROHS COMPLIANT: YES
Image is for illustrative purposes only. Please refer to product description.
ManufacturerEPCOS
Manufacturer Part NoB65815E0000R049
Newark Part No.70AK2223
Product RangeB65815 Series
Technical Datasheet
229 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $8.010 |
| 10+ | $5.500 |
| 25+ | $4.680 |
| 50+ | $4.130 |
| 100+ | $4.120 |
Price for:1 Kit
Minimum: 1
Multiple: 1
$8.01
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEPCOS
Manufacturer Part NoB65815E0000R049
Newark Part No.70AK2223
Product RangeB65815 Series
Technical Datasheet
Core TypeRM
Core SizeRM12
For Use WithInductors / Transformers
Core Material GradeN49
Effective Magnetic Path Length57mm
Ae Effective Cross Section Area146mm²
Inductance Factor Al3.7µH
Product RangeB65815 Series
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Core Type
RM
For Use With
Inductors / Transformers
Effective Magnetic Path Length
57mm
Inductance Factor Al
3.7µH
SVHC
No SVHC (21-Jan-2025)
Core Size
RM12
Core Material Grade
N49
Ae Effective Cross Section Area
146mm²
Product Range
B65815 Series
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
