B66375G0000X187

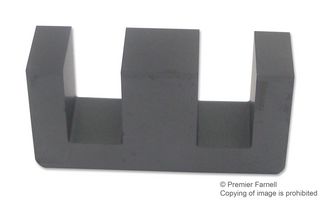

Transformer Cores, E, E80/38/20, N87, 184 mm, 390 mm RoHS Compliant: Yes
Image is for illustrative purposes only. Please refer to product description.
ManufacturerEPCOS
Manufacturer Part NoB66375G0000X187
Newark Part No.07X1865
Product RangeB66375 Series
Technical Datasheet
46 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $7.680 |
| 10+ | $5.180 |
| 25+ | $4.840 |
| 50+ | $3.850 |
| 100+ | $3.780 |
| 500+ | $3.700 |
| 1000+ | $3.630 |
Price for:Each
Minimum: 1
Multiple: 1
$7.68
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEPCOS
Manufacturer Part NoB66375G0000X187
Newark Part No.07X1865
Product RangeB66375 Series
Technical Datasheet
Core TypeE
Core SizeE80/38/20
Core Material GradeN87
For Use With-
Effective Magnetic Path Length184mm
Ae Effective Cross Section Area390mm²
Inductance Factor Al4.5µH
Product RangeB66375 Series
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Core Type
E
Core Material Grade
N87
Effective Magnetic Path Length
184mm
Inductance Factor Al
4.5µH
SVHC
No SVHC (21-Jan-2025)
Core Size
E80/38/20
For Use With
-
Ae Effective Cross Section Area
390mm²
Product Range
B66375 Series
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
