B66417U0250K187
TRANSFORMER CORE, 250NH, EFD20/10/7 ROHS COMPLIANT: YES

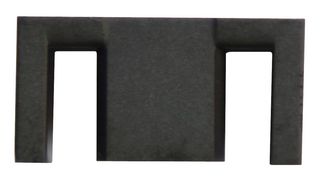

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEPCOS
Manufacturer Part NoB66417U0250K187
Newark Part No.54AJ2681
Product RangeB66417 Series
Technical Datasheet
1 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.040 |
| 10+ | $0.728 |
| 25+ | $0.630 |
| 50+ | $0.563 |
| 100+ | $0.501 |
| 500+ | $0.422 |
Price for:Each
Minimum: 1
Multiple: 1
$1.04
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEPCOS
Manufacturer Part NoB66417U0250K187
Newark Part No.54AJ2681
Product RangeB66417 Series
Technical Datasheet
Core TypeEFD
Core SizeEFD20/10/7
For Use WithDC/DC Converters
Core Material GradeN87
Effective Magnetic Path Length47mm
Ae Effective Cross Section Area31mm²
Inductance Factor Al250nH
Product RangeB66417 Series
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Core Type
EFD
For Use With
DC/DC Converters
Effective Magnetic Path Length
47mm
Inductance Factor Al
250nH
SVHC
No SVHC (21-Jan-2025)
Core Size
EFD20/10/7
Core Material Grade
N87
Ae Effective Cross Section Area
31mm²
Product Range
B66417 Series
