B66459K0000X187
TRANSFORMER CORE, N87, 8.3UH, I38/4/25 ROHS COMPLIANT: YES

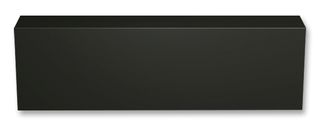

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEPCOS
Manufacturer Part NoB66459K0000X187
Newark Part No.29AJ4352
Product RangeB66459 Series
Technical Datasheet
353 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.590 |
| 10+ | $2.960 |
| 25+ | $2.820 |
| 50+ | $2.690 |
| 100+ | $2.550 |
| 500+ | $2.440 |
Price for:Each
Minimum: 1
Multiple: 1
$3.59
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEPCOS
Manufacturer Part NoB66459K0000X187
Newark Part No.29AJ4352
Product RangeB66459 Series
Technical Datasheet
Core TypeI
Core SizeI38/4/25
Core Material GradeN87
For Use With-
Effective Magnetic Path Length43.6mm
Ae Effective Cross Section Area194mm²
Inductance Factor Al8.3µH
Product RangeB66459 Series
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Core Type
I
Core Material Grade
N87
Effective Magnetic Path Length
43.6mm
Inductance Factor Al
8.3µH
SVHC
No SVHC (21-Jan-2025)
Core Size
I38/4/25
For Use With
-
Ae Effective Cross Section Area
194mm²
Product Range
B66459 Series
Technical Docs (2)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
