PR261-1
Contact, Connector, Socket, PCB, Solder, Test Receptacle, Flat, 3 A, 17.53 mm

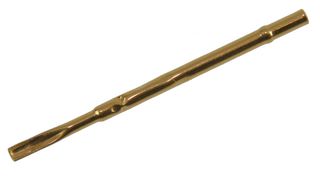

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoPR261-1
Newark Part No.91F7150
Product RangePR261 Series
Technical Datasheet
8 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $14.070 |
| 10+ | $12.630 |
| 25+ | $11.610 |
| 50+ | $10.640 |
| 100+ | $9.930 |
| 250+ | $9.270 |
Price for:Pack of 10
Minimum: 1
Multiple: 1
$14.07
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEVERETT CHARLES TECH
Manufacturer Part NoPR261-1
Newark Part No.91F7150
Product RangePR261 Series
Technical Datasheet
Connector TypeTest Receptacle
Centerline Spacing-
Connector Tip StyleFlat
Current Rating3A
Overall Length17.53mm
Spring Force Initial-
Spring Force Working Travel-
Product RangePR261 Series
SVHCNo SVHC (17-Jan-2023)
Product Overview
The PR261-1 is a Test Spring Socket with gold-plated plunger and socket. This test spring probe features equivalent to S2662B 6ED (solder cup) tip. Biasing-ball construction maximizes wiping contact of plunger to inner diameter of probe body. Pylon replaceable spring-loaded POGO® contacts provide high performance in testing and interconnect applications utilizing spring probe technology. Gold-plated contact body provides superior surface conditioning for consistently low contact resistance over life (typically 1000000 cycles).
- <lt/>30mΩ Electrical resistance
Applications
Test & Measurement
Technical Specifications
Connector Type
Test Receptacle
Connector Tip Style
Flat
Overall Length
17.53mm
Spring Force Working Travel
-
SVHC
No SVHC (17-Jan-2023)
Centerline Spacing
-
Current Rating
3A
Spring Force Initial
-
Product Range
PR261 Series
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Jan-2023)
