SIM5055-6-1-25-00-A
Memory Card Connector, SIM, Hinged, 6 Contacts, Phosphor Bronze, Gold Plated Contacts

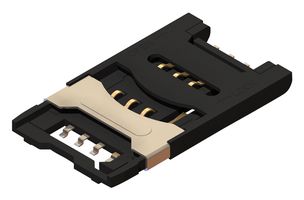

Image is for illustrative purposes only. Please refer to product description.
ManufacturerGCT
Manufacturer Part NoSIM5055-6-1-25-00-A
Newark Part No.28X2538
Product RangeSIM5055 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 7 week(s)
| Quantity | Price |
|---|---|
| 900+ | $1.670 |
| 1800+ | $1.580 |
Price for:Each (Supplied on Full Reel)
Minimum: 900
Multiple: 900
$1,503.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerGCT
Manufacturer Part NoSIM5055-6-1-25-00-A
Newark Part No.28X2538
Product RangeSIM5055 Series
Technical Datasheet
Product RangeSIM5055 Series
Connector TypeSIM Socket
Insert & Eject MechanismHinged
Memory / Card TypeSIM
No. of Contacts6Contacts
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
SVHCNo SVHC (27-Jun-2024)
Product Overview
The SIM5055-6-1-25-00-A is a 6-position surface-mount PCB Hinged 2FF SIM Connector with 3µ-inch gold-plated phosphor bronze contact terminal. The SIM5055 series connector is made with stainless steel SUS304 metallic shell and LCP housing.
- UL94V-0 Flammability rating
- 5000 Cycles durability
- -40 to 85°C Operating temperature range
Technical Specifications
Product Range
SIM5055 Series
Insert & Eject Mechanism
Hinged
No. of Contacts
6Contacts
Contact Plating
Gold Plated Contacts
Connector Type
SIM Socket
Memory / Card Type
SIM
Contact Material
Phosphor Bronze
SVHC
No SVHC (27-Jun-2024)
Alternatives for SIM5055-6-1-25-00-A
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
