95C05B3GWRT
Tactile Switch, 95C Series, Top Actuated, Surface Mount, Round Button, 160 gf, 50mA at 12VDC

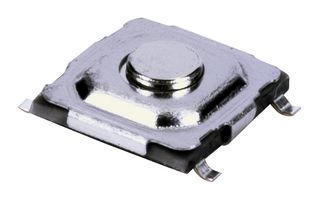

Image is for illustrative purposes only. Please refer to product description.
ManufacturerGRAYHILL
Manufacturer Part No95C05B3GWRT
Newark Part No.14N2016
Product Range95C Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 17 week(s)
| Quantity | Price |
|---|---|
| 250+ | $0.833 |
Price for:Each (Supplied on Cut Tape)
Minimum: 4000
Multiple: 4000
$3,332.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerGRAYHILL
Manufacturer Part No95C05B3GWRT
Newark Part No.14N2016
Product Range95C Series
Technical Datasheet
Product Range95C Series
Switch TerminalsSolder
Actuator OrientationTop Actuated
Switch MountingSurface Mount
Contact Current Max50mA
Actuator StyleRound Button
Contact Voltage DC Nom12V
Actuating Force160gf
Operating Force160gf
Contact Rating50mA at 12VDC
Switch Dimensions (L x W)5.2mm x 5.2mm
IP Rating-
IlluminationNon Illuminated
SVHCNo SVHC (17-Jan-2022)
Product Overview
The 95C05B3GWRT is a single-pole double-throw (SPDT) non-washable Tactile Switch with silver-plated brass gull wing terminals. The series-95C switch comes with UL94V-0 LCP thermoplastic base, silver-plated stainless-steel contacts and nickel-plated brass actuator.
- Excellent tactile feedback
- Compatible with SMT assembly including infrared and vapor phase
- Ultra miniature and lightweight structure
- 100mΩ Maximum contact resistance
- -25 to 70°C Operating temperature range
- UL94V-0 Flammability rating
Applications
Consumer Electronics, Audio, Computers & Computer Peripherals, Communications & Networking, Security, Test & Measurement
Technical Specifications
Product Range
95C Series
Actuator Orientation
Top Actuated
Contact Current Max
50mA
Contact Voltage DC Nom
12V
Operating Force
160gf
Switch Dimensions (L x W)
5.2mm x 5.2mm
Illumination
Non Illuminated
Switch Terminals
Solder
Switch Mounting
Surface Mount
Actuator Style
Round Button
Actuating Force
160gf
Contact Rating
50mA at 12VDC
IP Rating
-
SVHC
No SVHC (17-Jan-2022)
Technical Docs (1)
Alternatives for 95C05B3GWRT
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
