1591VF2BK

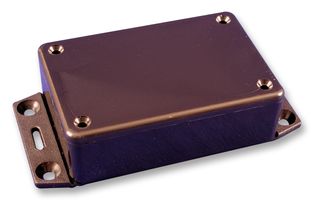

Plastic Enclosure, Flame Retardant, UL94V-0, IP54, Bottom Flange, Multipurpose, ABS, 88.9 mm
Image is for illustrative purposes only. Please refer to product description.
40 In Stock
Ship in 2-3 days(Supplier Direct Ship)
Order before 8pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $21.030 |
| 5+ | $17.980 |
| 10+ | $16.530 |
| 25+ | $15.370 |
| 50+ | $14.370 |
| 100+ | $13.580 |
Price for:Each
Minimum: 1
Multiple: 1
$21.03
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHAMMOND
Manufacturer Part No1591VF2BK
Newark Part No.80K0831
Enclosure TypeMultipurpose
Enclosure MaterialABS
External Height - Metric88.9mm
External Width - Metric120mm
External Depth - Metric120mm
IP RatingIP54
Body ColorBlack
NEMA Rating-
External Height - Imperial3.5"
External Width - Imperial4.7"
External Depth - Imperial4.7"
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview
The 1591VF2BK is a multi-purpose Enclosure made of plastic fire retardant ABS with bottom flange. It is ideally suited for mounting printed circuit boards. The lap joint construction provides protection against access of dust and splashing water. The flanged feet are perfect for wall or shelf mounting where ability to easily access enclosure is required for access to lid screws.
- Integral card guides accept 1.5mm PC cards
- Lid is secured with M3 x 10mm Philips machine screws, threaded into integral brass bushings
- Flange is factory glued to bottom of enclosure
Applications
Industrial
Technical Specifications
Enclosure Type
Multipurpose
External Height - Metric
88.9mm
External Depth - Metric
120mm
Body Color
Black
External Height - Imperial
3.5"
External Depth - Imperial
4.7"
SVHC
No SVHC (25-Jun-2025)
Enclosure Material
ABS
External Width - Metric
120mm
IP Rating
IP54
NEMA Rating
-
External Width - Imperial
4.7"
Product Range
-
Technical Docs (1)
Alternatives for 1591VF2BK
1 Product Found
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
