09061486901

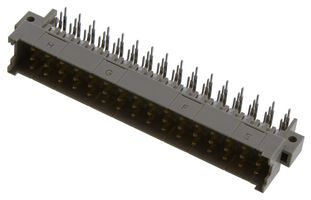

DIN 41612 Connector, 48 Contacts, Plug, 2.54 mm, 3 Row, z + b + d
Image is for illustrative purposes only. Please refer to product description.
248 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $7.860 |
| 10+ | $7.250 |
| 25+ | $7.250 |
| 50+ | $7.250 |
| 100+ | $7.250 |
| 250+ | $7.250 |
| 500+ | $6.730 |
Price for:Each
Minimum: 1
Multiple: 1
$7.86
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHARTING
Manufacturer Part No09061486901
Newark Part No.96F2671
Technical Datasheet
Product Range-
No. of Contacts48Contacts
Pitch Spacing2.54mm
No. of Rows3 Row
Rows Loadedz + b + d
Contact PlatingGold Plated Contacts
Contact MaterialCopper Alloy
No. of Mating Cycles400
SVHCNo SVHC (08-Jul-2021)
Product Overview
The 09061486901 is a 48-position 3-row Male DIN Power Connector with solder termination, 5.08mm pitch. Type D, angled orientation, with flange, copper alloy contacts. High current connectors in accordance with DIN IEC 60603-2 and optional coding systems to prevent incorrect mating. Made of thermoplastic and glass fiber reinforcement (30%).
- PL 2 according to IEC 60603-2 400 mating cycles
- UL94V-0 Flammability rating
- Temperature range from -55°C to 125°C
- Thermoplastic resin glass fibre filled moulding
- Copper alloy with gold plated contacts
Applications
Industrial, Logistics
Technical Specifications
Product Range
-
Gender
Plug
No. of Rows
3 Row
Contact Plating
Gold Plated Contacts
No. of Mating Cycles
400
No. of Contacts
48Contacts
Pitch Spacing
2.54mm
Rows Loaded
z + b + d
Contact Material
Copper Alloy
SVHC
No SVHC (08-Jul-2021)
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
