73101000019
Connector Kit, Heavy Duty

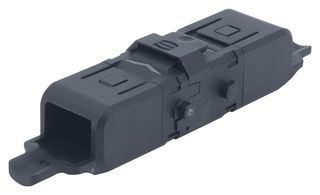

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARTING
Manufacturer Part No73101000019
Newark Part No.47AK2723
Product RangeHan 1A Series
Technical Datasheet
5 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $17.350 |
| 5+ | $17.350 |
| 10+ | $17.350 |
| 25+ | $17.350 |
| 50+ | $17.350 |
Price for:Each
Minimum: 1
Multiple: 1
$17.35
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHARTING
Manufacturer Part No73101000019
Newark Part No.47AK2723
Product RangeHan 1A Series
Technical Datasheet
Connector Kit TypeHeavy Duty
Kit Contents09100032601 Male Insert, 09100032701 Female Insert, 2 x 0910000 5300 Hoods
Product RangeHan 1A Series
SVHCNo SVHC (17-Dec-2015)
Product Overview
- Han® 1A kit
- Top entry hood, Snap-In coupler housing
- Rated voltage of 250V (UL), rated current of 10A, rated impulse voltage of 6kV
- Protection degree is IP20, material is polyamide plastic, plastic cable gland
- Temperature rating range from -30 to 90°C
- Cable diameter of 5.7mm to 10mm
- 3+GND insert, V-0 flammability
- 18 to 14AWG screw terminals
- 7.5mm wire strip length, <gt/>100 mating cycles
- Terminal screws (M3) are slotted 0.4mm x 2.5mm, 0.25Nm torque
Contents
Male insert (09100032601), Female insert (09100032701), Hood (x2) (09100005300).
Technical Specifications
Connector Kit Type
Heavy Duty
Product Range
Han 1A Series
Kit Contents
09100032601 Male Insert, 09100032701 Female Insert, 2 x 0910000 5300 Hoods
SVHC
No SVHC (17-Dec-2015)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2015)
