MST 3
Banana Test Connector, Plug, Cable Mount, 6 A, 60 V, Nickel Plated Contacts

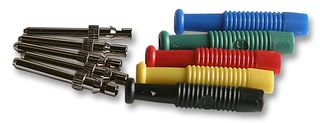

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHIRSCHMANN TEST AND MEASUREMENT
Manufacturer Part NoMST 3
Newark Part No.06WX5865
Product RangeMST 3 Series
Technical Datasheet
170 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.040 |
| 100+ | $2.840 |
| 250+ | $2.640 |
| 500+ | $2.440 |
| 1000+ | $2.240 |
Price for:Pack of 5
Minimum: 1
Multiple: 1
$3.04
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHIRSCHMANN TEST AND MEASUREMENT
Manufacturer Part NoMST 3
Newark Part No.06WX5865
Product RangeMST 3 Series
Technical Datasheet
Connector MountingCable Mount
Current Rating6A
Voltage Rating60V
Contact PlatingNickel Plated Contacts
Connector ColourBlack, Blue, Green, Red, Yellow
Contact MaterialBrass
Contact Termination TypeSolder
Product RangeMST 3 Series
SVHCNo SVHC (23-Jan-2024)
Product Overview
The MST 3 is a 2mm Miniature Plug, 6A/30VAC/60VDC rated, nickel-plated brass pin contact, solder as termination type. This MST 3 connector features flexible, shatter-proof insulated sleeve, connecting leads with a maximum external diameter of 1.9mm, available in black, red, blue, yellow, green, grey.
- Category I measurement according to IEC 61010 standard
- -25 to +60°C Rated temperature range
- PVC-P housing
- 6mΩ Contact resistance
Applications
Test & Measurement
Technical Specifications
Gender
Plug
Current Rating
6A
Contact Plating
Nickel Plated Contacts
Contact Material
Brass
Product Range
MST 3 Series
Connector Mounting
Cable Mount
Voltage Rating
60V
Connector Colour
Black, Blue, Green, Red, Yellow
Contact Termination Type
Solder
SVHC
No SVHC (23-Jan-2024)
