121-202EAJ-Q01

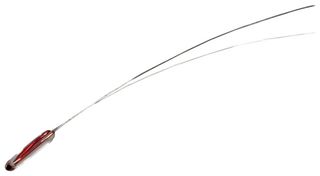

Probe, In-Line, 2 kohm, 121 Series, 3518 K, Through Hole, Radial Leaded, Radial Leaded
Image is for illustrative purposes only. Please refer to product description.
ManufacturerHONEYWELL
Manufacturer Part No121-202EAJ-Q01
Newark Part No.10M8467
Product Range121 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 21 week(s)
| Quantity | Price |
|---|---|
| 100+ | $18.770 |
| 250+ | $17.670 |
Price for:Each
Minimum: 100
Multiple: 25
$1,877.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHONEYWELL
Manufacturer Part No121-202EAJ-Q01
Newark Part No.10M8467
Product Range121 Series
Technical Datasheet
Thermistor TypeNTC
Resistance (25°C)2kohm
Resistance Tolerance (25°C)± 20%
Thermistor MountingThrough Hole
Product Range121 Series
NTC MountingThrough Hole
Thermistor Case StyleRadial Leaded
Thermistor TerminalsRadial Leaded
B-Constant3518K
B-Constant Tolerance-
NTC Case Size-
Thermal Time Constant (in Air)22s
Probe MaterialGlass
Probe Diameter2.54mm
Lead Length50.8mm
Operating Temperature Min-60°C
Operating Temperature Max300°C
Qualification-
Automotive Qualification Standard-
SVHCNo SVHC (07-Jul-2017)
Product Overview
The 121 series Temperature Sensor ideal for immersion in fluid and convenient for mounting in air sensor sensing assemblies. It is an in shock-resistant, rugged, glass encapsulated unit.
- Hermetically sealed in glass
- Enhanced reliability and stability
- Weldable/solderable Dumet leads
- Enhanced reliability
Applications
Defence, Military & Aerospace
Warnings
Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
Technical Specifications
Thermistor Type
NTC
Resistance Tolerance (25°C)
± 20%
Product Range
121 Series
Thermistor Case Style
Radial Leaded
B-Constant
3518K
NTC Case Size
-
Probe Material
Glass
Lead Length
50.8mm
Operating Temperature Max
300°C
Automotive Qualification Standard
-
Resistance (25°C)
2kohm
Thermistor Mounting
Through Hole
NTC Mounting
Through Hole
Thermistor Terminals
Radial Leaded
B-Constant Tolerance
-
Thermal Time Constant (in Air)
22s
Probe Diameter
2.54mm
Operating Temperature Min
-60°C
Qualification
-
SVHC
No SVHC (07-Jul-2017)
