30 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $17.030 |
| 5+ | $17.030 |
| 10+ | $15.820 |
| 25+ | $14.760 |
| 50+ | $14.080 |
Price for:Each
Minimum: 1
Multiple: 1
$17.03
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

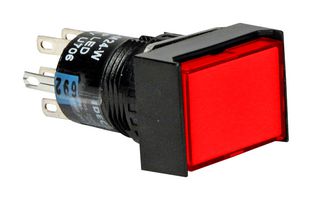

Product Information
ManufacturerIDEC
Manufacturer Part NoAL6H-M14-R
Newark Part No.14C9734
Product RangeA6 Series
Technical Datasheet
Panel Cutout Diameter16mm
Product RangeA6 Series
Contact ConfigurationSPDT
Switch OperationMomentary
Pushbutton Actuator StyleRectangular
Contact Current AC Max1A
Actuator / Cap ColourRed
Contact Current Max1A
Contact Voltage AC Nom110V
Contact Voltage VAC110V
Contact Current DC Max1A
Contact Voltage DC Nom24V
Contact Voltage VDC24V
IP RatingIP40, IP65
Switch MountingPanel Mount
Switch TerminalsQuick Connect, Solder
Illumination ColorRed
Panel Cutout (H x W)-
SVHCNo SVHC (16-Jul-2019)
Technical Specifications
Panel Cutout Diameter
16mm
Contact Configuration
SPDT
Pushbutton Actuator Style
Rectangular
Actuator / Cap Colour
Red
Contact Voltage AC Nom
110V
Contact Current DC Max
1A
Contact Voltage VDC
24V
Switch Mounting
Panel Mount
Illumination Color
Red
SVHC
No SVHC (16-Jul-2019)
Product Range
A6 Series
Switch Operation
Momentary
Contact Current AC Max
1A
Contact Current Max
1A
Contact Voltage VAC
110V
Contact Voltage DC Nom
24V
IP Rating
IP40, IP65
Switch Terminals
Quick Connect, Solder
Panel Cutout (H x W)
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (16-Jul-2019)
