Available to Order
Manufacturer Standard Lead Time: 9 week(s)
| Quantity | Price |
|---|---|
| 1+ | $15.320 |
Price for:Each
Minimum: 1
Multiple: 1
$15.32
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information

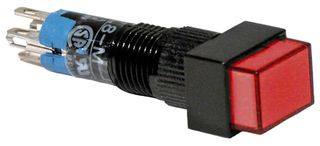

ManufacturerIDEC
Manufacturer Part NoAL8H-M11-R
Newark Part No.15C1074
Product RangeA8 Series
Technical Datasheet
Product RangeA8 Series
Panel Cutout Diameter8mm
Contact Current Max1A
Contact ConfigurationSPDT
Contact Voltage AC Nom240V
Switch OperationMomentary
Pushbutton Actuator StyleRectangular
Actuator / Cap ColourRed
Contact Voltage DC Nom120V
Contact Current AC Max1A
Contact Voltage VAC120V
Contact Current DC Max1A
Contact Voltage VDC24V
IP RatingIP40
Switch MountingPanel Mount
Illumination ColorRed
Switch TerminalsSolder Lug
Panel Cutout (H x W)-
SVHCNo SVHC (16-Jul-2019)
Technical Specifications
Product Range
A8 Series
Contact Current Max
1A
Contact Voltage AC Nom
240V
Pushbutton Actuator Style
Rectangular
Contact Voltage DC Nom
120V
Contact Voltage VAC
120V
Contact Voltage VDC
24V
Switch Mounting
Panel Mount
Switch Terminals
Solder Lug
SVHC
No SVHC (16-Jul-2019)
Panel Cutout Diameter
8mm
Contact Configuration
SPDT
Switch Operation
Momentary
Actuator / Cap Colour
Red
Contact Current AC Max
1A
Contact Current DC Max
1A
IP Rating
IP40
Illumination Color
Red
Panel Cutout (H x W)
-
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (16-Jul-2019)
