1 In Stock
| Quantity | Price |
|---|---|
| 1+ | $30.770 |
| 5+ | $27.690 |
| 10+ | $25.540 |
| 25+ | $23.080 |
Price for:Each
Minimum: 1
Multiple: 1
$30.77
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerIDEC
Manufacturer Part NoHW1S-3JTF21N1
Newark Part No.30B9695
Product RangeHW Series
Technical Datasheet
No. of Switch Positions3 Position
No. of Poles3 Pole
Angle of Throw45°
Contact Current AC Max10A
Contact Voltage AC Max600V
Product RangeHW Series
IlluminationNon Illuminated
Contact Current DC Max8A
Contact Voltage DC Max220V
SVHCNo SVHC (16-Jul-2019)
Product Overview

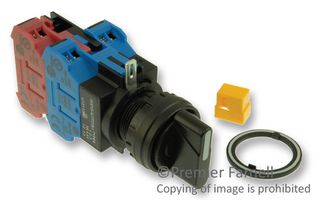

The HW1S-3JTF21N1 is a 2NO-1NC 3-position Selector Switch with finger safe screw terminals and maintained (J cam) knob handle operator. This HW series switch features plastic bezel, locking lever removable gold-plated silver contact blocks and tamperproof construction.
- Worldwide approvals
- Easy to assemble
- Conforming to CENELEC EN50005 terminal referencing
- Finger safe (IP20) screw terminals standard
Applications
Industrial
Technical Specifications
No. of Switch Positions
3 Position
Angle of Throw
45°
Contact Voltage AC Max
600V
Illumination
Non Illuminated
Contact Voltage DC Max
220V
No. of Poles
3 Pole
Contact Current AC Max
10A
Product Range
HW Series
Contact Current DC Max
8A
SVHC
No SVHC (16-Jul-2019)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (16-Jul-2019)
