Connector, DL1 Series, 156 Contacts, 2.54 mm, Receptacle, Wire Wrap, 6 Rows

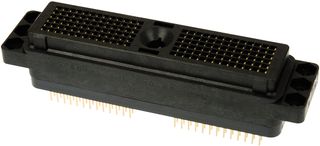

Image is for illustrative purposes only. Please refer to product description.
ManufacturerITT CANNON
Manufacturer Part No110536-1007
Newark Part No.25C1538
Product RangeDL1 Series
Technical Datasheet
Available to Order by Phone
Delivery estimated post order confirmations.You will be charged on dispatch.
Product Information
ManufacturerITT CANNON
Manufacturer Part No110536-1007
Newark Part No.25C1538
Product RangeDL1 Series
Technical Datasheet
Product RangeDL1 Series
No. of Contacts156Contacts
Card Edge / Backplane Connector TypeBackplane
Pitch Spacing2.54mm
Connector TypeFemale Receptacle
Contact Termination TypeWire Wrap
No. of Rows6Rows
Row Pitch-
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCTo Be Advised
Product Overview
The 110536-1007 is a 156-position 6-row Card Edge Receptacle with gold-plated copper alloy square post contacts and a plastic body. It is suitable for through-hole mounting pattern.
- 5A Maximum current rating
- 1200VACrms Dielectric withstanding voltage
- 15mΩ Maximum contact resistance
- 5000MΩ Minimum insulation resistance
- -55 to 105°C Operating temperature range
Applications
Medical, Test & Measurement, Commercial, Automation & Process Control, Computers & Computer Peripherals, Avionics, Robotics, Lighting, Communications & Networking, Automotive
