DM53745-1
D Sub Contact, Pin, Copper Alloy, Gold Plated Contacts, 8 AWG

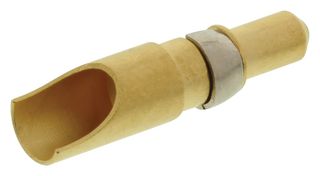

Image is for illustrative purposes only. Please refer to product description.
ManufacturerITT CANNON
Manufacturer Part NoDM53745-1
Newark Part No.47M0080
Product RangeCombo D Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $4.800 |
| 10+ | $4.080 |
| 25+ | $3.840 |
| 50+ | $3.650 |
| 100+ | $3.480 |
| 250+ | $3.260 |
| 500+ | $3.100 |
| 1000+ | $2.950 |
Price for:Each
Minimum: 1
Multiple: 1
$4.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerITT CANNON
Manufacturer Part NoDM53745-1
Newark Part No.47M0080
Product RangeCombo D Series
Technical Datasheet
For Use With-
Contact GenderPin
D Sub Contact TypePin (Male)
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Wire Size AWG Max8AWG
Wire Size AWG Min-
Contact Termination TypeSolder
Product RangeCombo D Series
SVHCTo Be Advised
Product Overview
The DM53745-1 is a high-power Solder Plug Contact, made of copper with gold finish. The D-sub series contact used with Combo D series connectors and accepts 8AWG maximum wire size.
- 40A Current rating
- -55 to +125°C Operating temperature range
Applications
Industrial
Technical Specifications
For Use With
-
D Sub Contact Type
Pin (Male)
Contact Plating
Gold Plated Contacts
Wire Size AWG Min
-
Product Range
Combo D Series
Contact Gender
Pin
Contact Material
Copper Alloy
Wire Size AWG Max
8AWG
Contact Termination Type
Solder
SVHC
To Be Advised
Technical Docs (1)
Alternatives for DM53745-1
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
