050-424-3188-220
RF / Coaxial Connector, SSMC Coaxial, Straight Plug, Solder, 50 ohm, RG174, RG316, Beryllium Copper

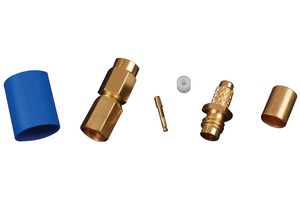

Image is for illustrative purposes only. Please refer to product description.
ManufacturerITT SEALECTRO
Manufacturer Part No050-424-3188-220
Newark Part No.90F2612
Technical Datasheet
1 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $7.650 |
| 10+ | $7.650 |
| 25+ | $7.650 |
Price for:Each
Minimum: 1
Multiple: 1
$7.65
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerITT SEALECTRO
Manufacturer Part No050-424-3188-220
Newark Part No.90F2612
Technical Datasheet
Connector TypeSSMC Coaxial
Connector Body StyleStraight Plug
Coaxial TerminationSolder
Impedance50ohm
Coaxial Cable TypeRG174, RG316
Contact MaterialBeryllium Copper
Contact PlatingGold Plated Contacts
Frequency Max4GHz
Connector MountingCable Mount
Product Range-
SVHCTo Be Advised
Product Overview
The 050-424-3188-220 is a SSMC Straight Plug with gold-plated beryllium copper contacts. It is made of brass with gold/nickel plated finish and comes with a PTFE insulator. It is suitable for RG174/U and 316/U cable. This SSMC PLUG STRT RG316 SSMC micro miniature connectors are used where a positive mechanical engagement is required and where space permits the use of torque wrenches.
- Small size
- Low mass
- 1000MΩ Minimum insulation resistance
- 1A DC Maximum contact current rating
- -65 to 165°C Temperature range
Applications
Commercial, Defence, Military & Aerospace, RF Communications
Technical Specifications
Connector Type
SSMC Coaxial
Coaxial Termination
Solder
Coaxial Cable Type
RG174, RG316
Contact Plating
Gold Plated Contacts
Connector Mounting
Cable Mount
SVHC
To Be Advised
Connector Body Style
Straight Plug
Impedance
50ohm
Contact Material
Beryllium Copper
Frequency Max
4GHz
Product Range
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
