04SUR04SUR32W300
Ribbon Cable, IDC Receptacle to IDC Receptacle, 4 Positions, 1 ft, 300 mm, 0.8 mm, SUR Series

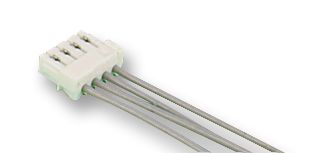

Image is for illustrative purposes only. Please refer to product description.
ManufacturerJST / JAPAN SOLDERLESS TERMINALS
Manufacturer Part No04SUR04SUR32W300
Newark Part No.71C3022
Product RangeSUR Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
| Quantity | Price |
|---|---|
| 1+ | $8.120 |
| 10+ | $5.630 |
| 50+ | $4.060 |
| 100+ | $3.660 |
| 250+ | $3.250 |
| 500+ | $3.000 |
Price for:Each
Minimum: 1
Multiple: 1
$8.12
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerJST / JAPAN SOLDERLESS TERMINALS
Manufacturer Part No04SUR04SUR32W300
Newark Part No.71C3022
Product RangeSUR Series
Technical Datasheet
Connector to ConnectorIDC Receptacle to IDC Receptacle
No. of Positions4Positions
Cable Length - Imperial1ft
Cable Length - Metric300mm
Connector Pitch0.8mm
Product RangeSUR Series
Cable Assembly Type-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 04SUR-04SUR-32W300 is a 300mm Ribbon Cable with 4-postion IDC receptacle at both ends. 0.8mm pitch. The 3-point insulation grip features and the strain relief ensures a firm grip on terminated wires and protection of the insulation displacement connection from possible damage. Applicable wire is of #32AWG with only 0.38mm (0.015-inch) OD, with this super fine wire, routing of wires is easy. The header is fully shrouded, but remains thin. The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection.
- 3-point Grip construction
- Twin U-slot insulation displacement section
- 32AWG Wire size
- 100MΩ Insulation resistance
- UL94V-0 Flammability rating
Applications
Industrial
Technical Specifications
Connector to Connector
IDC Receptacle to IDC Receptacle
Cable Length - Imperial
1ft
Connector Pitch
0.8mm
Cable Assembly Type
-
No. of Positions
4Positions
Cable Length - Metric
300mm
Product Range
SUR Series
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
