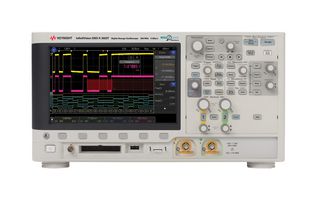

DSOX3022T

DSOX3022T is an InfiniiVision 3000T X-series redefined 200MHz, 2 channel digital signal oscilloscope (DSO). It provides the most signal detail, more functionality than any other oscilloscope and gave maximum investment protection. The user interface allows to use the alphanumeric pad for quick annotation, place waveforms or cursors in exact positions and drag docking panels across the screen to see more measurement information. The 3000T X-series offers three ways to access key menus and features: touch GUI for those that prefer tablet or smart phone touch interfaces, front panel buttons and knobs for the traditional oscilloscope users, and Keysight Insight pull down menu for users who prefer Windows-like operations.

• 7-in-1 instruments helps you solve your problems
• Easily view and analyze your signals with on the large touch screen
• Isolate signals in seconds with exclusive Zone touch triggering
• 8.5inch capacitive touch gesture-enabled display
• Excellent signal integrity allows to see more signal detail
• Standard segmented smart memory allows to capture longer periods of time at high sample rates
• Standard advanced math capabilities allow new views of signals
• Supports 38 automated measurements and waveform update rate greater than 1,000,000wfms/sec
• Localized GUI and front panel options supports 15 different languages
• Independent knobs per channel for fast operation

Contents

DSO, Factory 3-yr warranty (90 days for unserialized accessories such as passive probes), 3-yr certificate of calibration, Secure erase, One N2843A 500MHz 10:1 attenuation passive probe per channel, Multi-language interface (English, Chinese (simplified), Chinese (traditional), Czech, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Polish, Thai, Turkish), CD containing localized User’s guide, Service guide, and programmer’s manual, Localized power cord and overlay.
