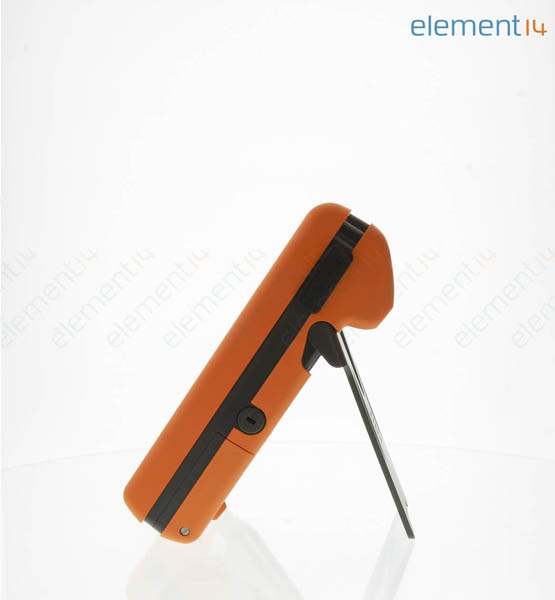

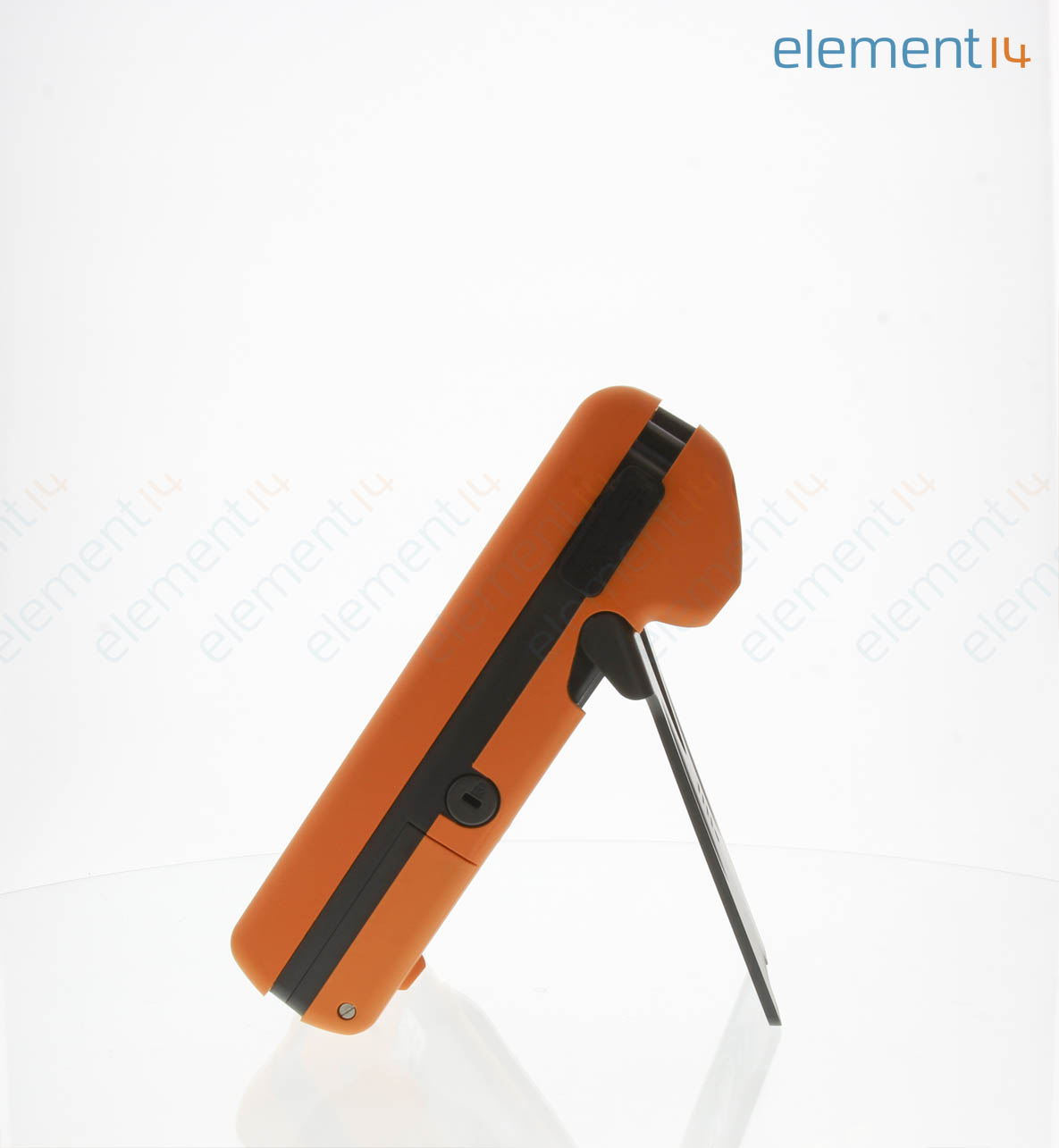

KEYSIGHT TECHNOLOGIES U1620A
Oscilloscope, U1600 Series, 2 Channel, 200 MHz, 2 GSPS, 1 Mpts, 1.75 ns
- Manufacturer:
- KEYSIGHT TECHNOLOGIES KEYSIGHT TECHNOLOGIES
- Manufacturer Part No:
- U1620A
- Newark Part No.:
- 76T5097
-
- Product Range
- U1600 Series
- Technical Datasheet:
- U1620A Datasheet
- ECAD / MCAD
-
Product Range Selector (U1600 Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- U1600 Series
- :
- 2 Channel
- :
- 200MHz
- :
- 2GSPS
- :
- 1 Mpts
- :
- 1.75ns
- :
- TFT LCD Color
- :
- One Probe Per Channel (10:1), Test Lead, USB Cable, Lithium-Ion Battery Pack, Certificate of Calibration, Power Cord, User Manual
- :
- 3 Years
- :
- US
Technical Documents (7)
Product Overview
U1620A is the world's first handheld oscilloscope with a VGA display. This 200 MHz handheld oscilloscope offers a floating measurement capability with two CAT III 600 V isolated channels. With up to 2 GSa/s sampling rate and 2 Mpts memory depth, it captures more waveforms from signals such as pulse width modulated circuit, in rush, transient, and motor start up sequences. The benchtop-like display and dual window zoom allow you to easily identify problem areas and zoom in for more detailed analysis. Now, you can view signals in detail and detect glitches easily.
- 200 MHz bandwidth with two isolated channels
- 5.7-inch VGA TFT LCD display with 3 selectable viewing modes (indoor, outdoor and night vision)
- 2 Mpts memory depth and 2 GSa/s sampling rate allows detailed analysis of captured glitches
- 10,000-count resolution on DMM display
- Channel-to-channel isolation with CAT III 600 V safety ratings
- Data logging capability to PC
- 10 selectable languages on the User Interface (UI) system
Applications
Maintenance & Repair, Industrial
