KPEG130
PIEZO TRANSDUCER

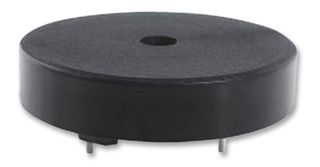

Image is for illustrative purposes only. Please refer to product description.
410 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.500 |
| 10+ | $2.060 |
| 25+ | $1.910 |
| 50+ | $1.750 |
| 100+ | $1.560 |
| 500+ | $1.410 |
| 1000+ | $1.210 |
| 2500+ | $1.090 |
Price for:Each
Minimum: 1
Multiple: 1
$2.50
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerKINGSTATE
Manufacturer Part NoKPEG130
Newark Part No.97K2747
Technical Datasheet
Transducer FunctionAudio Indicator
TonesContinuous
Supply Voltage Min4V
Sound Pressure Level (SPL)90dB
Resonant Frequency3kHz
Supply Voltage Max28V
Operating Current Max10mA
Sound Level Distance10cm
Sound Level Distance0
Capacitance0.018µF
Operating Temperature Min-30°C
Operating Temperature Max85°C
Product Range-
SVHCLead titanium zirconium oxide (23-Jan-2024)
Technical Specifications
Transducer Function
Audio Indicator
Supply Voltage Min
4V
Resonant Frequency
3kHz
Operating Current Max
10mA
Sound Level Distance
0
Operating Temperature Min
-30°C
Product Range
-
Tones
Continuous
Sound Pressure Level (SPL)
90dB
Supply Voltage Max
28V
Sound Level Distance
10cm
Capacitance
0.018µF
Operating Temperature Max
85°C
SVHC
Lead titanium zirconium oxide (23-Jan-2024)
Technical Docs (1)
Alternatives for KPEG130
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead titanium zirconium oxide (23-Jan-2024)
