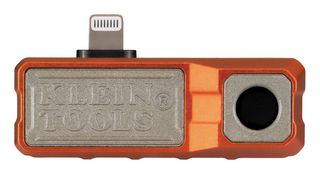

TI222

TI222 is a thermal imager for iOS devices has 10,800 pixels delivering excellent resolution to troubleshoot hot and cold spots. This Thermal Imager is perfect for detecting hot spots in panels, on wiring, or on parts of equipment; helping find sources of energy loss within a home/building; helps detect moisture behind walls and flooring; clogs in pipes; and much more. Fits phone cases up to 1/16-Inch (1.5 mm). Phone cases thicker than 1/16-Inch (1.5 mm) may require removal of case for secure connection. Easily capture, store, and share thermal images and video through the Klein Tools Thermal Imager App.

• Spectral range from 8 to 14μm
• Maximum frames per second <9Hz, FoV 50°, fixed focus
• JPG/MP4 image/video formats
• Features touch screen temperature, high/low temperatures, and differential temperature readout
• View temperature ranges from -4 to 752°F in three color palettes; ironbow, rainbow, or grayscale
• Includes high/low temperature alarms to monitor systems
• Compatible with iOS devices 11 and higher
• Thermal Imager App is available for free in the App Store
• Durable 6.6foot (2m) drop test protection
• Powered from external device

Contents

Thermal Imager, USB-C connector, Micro-USB connector/adapter, Hard storage case with carabiner, Instructions.
