01500332H
Fuseholder, Cartridge In Line, 1 Fuse, 15 A, 500 VAC, 125 VDC, 1/4" x 1-1/4", 3AG, Wire Leaded
Image is for illustrative purposes only. Please refer to product description.
2,265 In Stock
4,300 more incoming. You can reserve stock now
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.250 |
| 25+ | $1.720 |
| 100+ | $1.320 |
| 250+ | $1.200 |
| 500+ | $1.090 |
| 1000+ | $1.000 |
| 2500+ | $0.969 |
| 5000+ | $0.937 |
Price for:Each
Minimum: 1
Multiple: 1
$2.25
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part No01500332H
Newark Part No.91T1630
Product Range150 Series
Fuse Holder TypeCartridge In Line Fuse Holder
Fuse Current15A
Fuse Size Held1/4" x 1-1/4", 6.3mm x 32mm, 3AG
Holder TerminalsWire Leaded
No. of Fuses1Fuses
Product Range150 Series
Voltage Rating VAC500V
Voltage Rating VDC125V
SVHCTo Be Advised
Product Overview

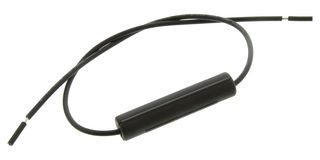

01500332H is a in-line glass holder. It is ideal for applications where supplemental protection is needed, such as lighting ballasts and power supplies. 8-inch pre-stripped wire leads and fuse clips come preassembled for quick installation.
- Single piece body minimizes component count
- High voltage rating accommodates many power applications
- Wire leads are pre-attached to fuse clips for quick assembly
- Single piece molded body, UL recognized
- 500VAC, 125VDC voltage rating, 15A current rating
- 1⁄4” x 1⁄4” fuse type, tin-plated brass fuse clips
- Black 18 AWG, 150°C stranded wire, single piece thermoplastic molded body
- UL94 V-0 rating, UL Recognized (File No. E14721)
- Operating temperature range from -55°C to 125°C
Technical Specifications
Fuse Holder Type
Cartridge In Line Fuse Holder
Fuse Size Held
1/4" x 1-1/4", 6.3mm x 32mm, 3AG
No. of Fuses
1Fuses
Voltage Rating VAC
500V
SVHC
To Be Advised
Fuse Current
15A
Holder Terminals
Wire Leaded
Product Range
150 Series
Voltage Rating VDC
125V
Technical Docs (1)
