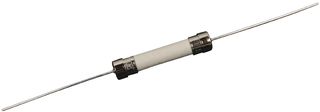

Fuse, Cartridge, Fast Acting, 20 A, 500 V, 6.3mm x 32mm, 1/4" x 1-1/4", 505 Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part No0505020.MXEP
Newark Part No.01P9417
Product Range505 Series
Technical Datasheet
905 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.750 |
| 10+ | $3.430 |
| 25+ | $3.170 |
| 50+ | $3.170 |
| 100+ | $3.170 |
| 500+ | $2.670 |
| 1000+ | $2.520 |
Price for:Each
Minimum: 1
Multiple: 1
$3.75
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part No0505020.MXEP
Newark Part No.01P9417
Product Range505 Series
Technical Datasheet
Blow CharacteristicFast Acting
Fuse Current20A
Voltage Rating VAC500V
Fuse Size Metric6.3mm x 32mm
Fuse Size Imperial1/4" x 1-1/4"
Product Range505 Series
Breaking Capacity Current AC30kA
SVHCNo SVHC (25-Jun-2020)
Product Overview
The 0505020.MXEP is a 20A fast-acting Cartridge Fuse with ceramic body, nickel plated brass cap and tin-plated copper leads. It features a 500VAC/VDC rated ceramic fuse with remarkable interrupting rating. It is well suited for circuit protection in high energy applications. In addition, the 505 series with high interrupting rating at both 500VAC and 500VDC which ensures the circuit is well-protected under very high current short circuit conditions.
- DC interrupting current
- Provides fast response to faulty current
- -55 to 125°C Operating temperature range
Applications
Power Management
Technical Specifications
Blow Characteristic
Fast Acting
Voltage Rating VAC
500V
Fuse Size Imperial
1/4" x 1-1/4"
Breaking Capacity Current AC
30kA
Fuse Current
20A
Fuse Size Metric
6.3mm x 32mm
Product Range
505 Series
SVHC
No SVHC (25-Jun-2020)
