0BLN025.T
Fuse, Industrial / Power, BLN Series, 25 A, 250 VAC, 10.3mm x 38.1mm, 13/32" x 1-1/2"

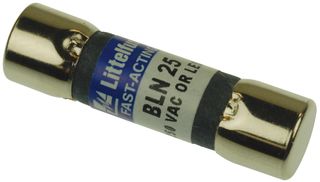

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part No0BLN025.T
Newark Part No.02B6880
Product RangeBLN Series
Technical Datasheet
22 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $2.970 |
| 10+ | $2.970 |
| 25+ | $2.970 |
| 50+ | $2.970 |
| 100+ | $2.970 |
| 500+ | $2.970 |
| 1000+ | $2.970 |
Price for:Each
Minimum: 1
Multiple: 1
$2.97
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part No0BLN025.T
Newark Part No.02B6880
Product RangeBLN Series
Technical Datasheet
Product RangeBLN Series
Fuse Current25A
Voltage Rating VAC250VAC
Voltage Rating VDC-
Fuse Size Metric10.3mm x 38.1mm
Fuse Size Imperial13/32" x 1-1/2"
Blow CharacteristicFast Acting
SVHCTo Be Advised
Product Overview
The BLN series midget Fast Acting Fuse made of fibre tube body provides protection for military applications and control circuits.
- 10000A at 250VAC Interrupting rating
Applications
Safety, Defence, Military & Aerospace
Technical Specifications
Product Range
BLN Series
Voltage Rating VAC
250VAC
Fuse Size Metric
10.3mm x 38.1mm
Blow Characteristic
Fast Acting
Fuse Current
25A
Voltage Rating VDC
-
Fuse Size Imperial
13/32" x 1-1/2"
SVHC
To Be Advised
Technical Docs (2)
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
