SML-LXL8047UVC
UV-A Emitter, 405nm, 100° Half Intensity, 3.6V/700mA Forward, Top View SMD, 8mm

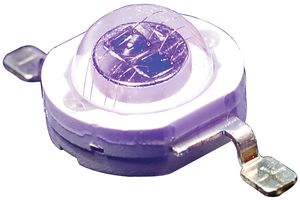

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLUMEX
Manufacturer Part NoSML-LXL8047UVC
Newark Part No.66W2644
Product RangeTitanBrite Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 11 week(s)
Product Information
ManufacturerLUMEX
Manufacturer Part NoSML-LXL8047UVC
Newark Part No.66W2644
Product RangeTitanBrite Series
Technical Datasheet
UV LED TypeUV-A
Wavelength405nm
Radiant Power-
Angle of Half Intensity100°
UV LED Case StyleTop View SMD, 8mm
Forward Current If700mA
Forward Voltage3.6V
Product RangeTitanBrite Series
Technology / MaterialInGaN
SVHCNo SVHC (17-Jan-2022)
Product Overview
The SML-LXL8047UVC is a 8mm purple surface mount LED has a PCB footprint enabling designers to achieve space savings compared with similar-performing lamps using technologies. The TitanBrite™ LED is ideal for a wide range of applications that require bright, intense light with low energy consumption and have space limitations. This 405nm wavelength emitter is ideal for water-treatment and food-processing applications.
- Round top dome
Applications
Medical, Security, Signal Processing
Technical Specifications
UV LED Type
UV-A
Radiant Power
-
UV LED Case Style
Top View SMD, 8mm
Forward Voltage
3.6V
Technology / Material
InGaN
Wavelength
405nm
Angle of Half Intensity
100°
Forward Current If
700mA
Product Range
TitanBrite Series
SVHC
No SVHC (17-Jan-2022)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
