HEP-100-24A
AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 96 W, 24 V, 4 A

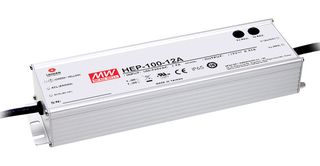

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMEAN WELL
Manufacturer Part NoHEP-100-24A
Newark Part No.44AC5213
Product RangeHEP-100 Series
Technical Datasheet
5 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $108.220 |
| 10+ | $96.910 |
| 25+ | $92.800 |
Price for:Each
Minimum: 1
Multiple: 1
$108.22
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMEAN WELL
Manufacturer Part NoHEP-100-24A
Newark Part No.44AC5213
Product RangeHEP-100 Series
Technical Datasheet
Power Supply ApplicationsITE
No. of Outputs1Outputs
Output Power Max96W
Output Voltage - Output 124VDC
Output Current - Output 14A
Output Voltage - Output 2-
Output Current - Output 2-
Output Voltage - Output 3-
Output Current - Output 3-
Output Voltage - Output 4-
Output Current - Output 4-
Input Voltage VAC90V AC to 305V AC
Power Supply Output TypeAdjustable, Fixed
Product RangeHEP-100 Series
SVHCNo SVHC (27-Jun-2024)
Product Overview
HEP-100-24A is a HEP-100 series 100W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environment. This is housed with the aluminum case and fully potted with heat-conducted silicone. It includes short circuit, overload, over voltage, over temperature protection. Application includes outdoor telecommunication equipment, outdoor electronic signage and billboard, petroleum plant or mine shaft facility. Approved by UL62368-1, IEC62368-1, IP65, EAC TP TC 004, design refer to BS EN/EN62368-1.
- Input voltage range from 85 to 264VAC(277VAC operational), 120 to 370VDC(390VDC operational)
- Output DC voltage is 24V, output rated current is 4A
- Output rated power is 96W, typical efficiency is 93%
- Standard model, IP65, Vo and Io level can be adjusted through internal potentiometer
- Universal AC input / full range, built-in active PFC function
- Fanless design, cooling by free air convection, meet 6KV surge immunity level
- Withstand 10G vibration test, operating altitude up to 5000 meters
- 6 years warranty
- Working temperature range from -55 to +70°C
- Dimension is (L x W x H) 8.66 x 2.67 x 1.52inch
Technical Specifications
Power Supply Applications
ITE
Output Power Max
96W
Output Current - Output 1
4A
Output Current - Output 2
-
Output Current - Output 3
-
Output Current - Output 4
-
Power Supply Output Type
Adjustable, Fixed
SVHC
No SVHC (27-Jun-2024)
No. of Outputs
1Outputs
Output Voltage - Output 1
24VDC
Output Voltage - Output 2
-
Output Voltage - Output 3
-
Output Voltage - Output 4
-
Input Voltage VAC
90V AC to 305V AC
Product Range
HEP-100 Series
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
