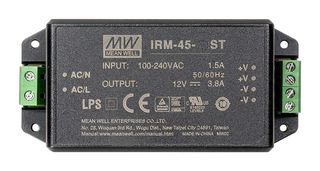

IRM-45-24ST

IRM-45-24ST is a IRM-45 series 45W miniature AC/DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment's. The 94V-0 flame retardant plastic case and the fully-potted silicone enhance the heat dissipation. Screw terminal style model (ST) meet the anti-vibration demand up to 5G, it provides the fundamental resistance to dust and moisture. The Class II design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/ EN 55032 class B the supreme EMC features keep the end electronic units f rom electromagnetic interference. It includes short circuit, overload, over voltage protection. Application includes industrial electrical equipment, mechanical equipment, factory automation equipment, handheld electronic device. Approved by IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, EAC TP TC 004, BSMI CNS14336-1.

• Input voltage range from 85 to 305VAC, output DC voltage is 24V
• Output rated current is 1.9A, output rated power is 45.6W, typical efficiency is 89.5%
• 3.43''x2.05''compact size, no load power consumption<lt/>0.15W, pass LPS
• EMI class B without additional components, cooling by free air convection
• Over voltage category III
• 3 years warranty
• Working temperature range from -30 to +70°C
• Dimension is ( L x W x H) 4.29 x 2.04 x 1.31inch
