ATF16V8BQL-15JU
SPLD, 8 I/O, LCC-20 ROHS COMPLIANT: YES

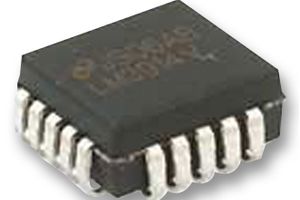

Image is for illustrative purposes only. Please refer to product description.
259 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.580 |
| 10+ | $1.510 |
| 25+ | $1.440 |
| 96+ | $1.400 |
| 144+ | $1.360 |
Price for:Each
Minimum: 1
Multiple: 1
$1.58
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMICROCHIP
Manufacturer Part NoATF16V8BQL-15JU
Newark Part No.65AH3802
Technical Datasheet
Propagation Delay15ns
SPLD TypeEEPLD
No. of I/O's8I/O's
No.of User I/Os8I/O's
No. of Logic Cells8Logic Cells
Frequency62MHz
IC Case / PackageLCC
Supply Current Max80mA
Logic Case StyleLCC
No. of Pins20Pins
Supply Voltage Min4.5V
Supply Voltage Max5.5V
IC MountingSurface Mount
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Range-
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Propagation Delay
15ns
No. of I/O's
8I/O's
No. of Logic Cells
8Logic Cells
IC Case / Package
LCC
Logic Case Style
LCC
Supply Voltage Min
4.5V
IC Mounting
Surface Mount
Operating Temperature Max
85°C
SVHC
No SVHC (21-Jan-2025)
SPLD Type
EEPLD
No.of User I/Os
8I/O's
Frequency
62MHz
Supply Current Max
80mA
No. of Pins
20Pins
Supply Voltage Max
5.5V
Operating Temperature Min
-40°C
Product Range
-
Technical Docs (3)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
