Contact, MLX™, MLX 42023 Series, Pin, Crimp, 14 AWG, Tin Plated Contacts

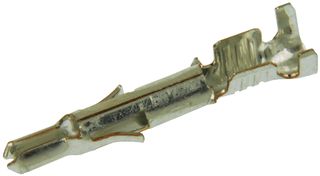

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No02-08-2006
Newark Part No.63M0903
Product RangeMLX 42023 Series
Also Known As42023-2B1L, GTIN UPC EAN: 800753615670
Technical Datasheet
420 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $0.108 |
| 10+ | $0.089 |
| 25+ | $0.073 |
| 50+ | $0.071 |
| 100+ | $0.069 |
| 250+ | $0.067 |
| 500+ | $0.066 |
| 1000+ | $0.063 |
Price for:Each
Minimum: 1
Multiple: 1
$0.11
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No02-08-2006
Newark Part No.63M0903
Product RangeMLX 42023 Series
Also Known As42023-2B1L, GTIN UPC EAN: 800753615670
Technical Datasheet
Product RangeMLX 42023 Series
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Max14AWG
Contact PlatingTin Plated Contacts
For Use WithMolex MLX 42021 & 42022 Series Plug & Receptacle Housing Connectors
Wire Size AWG Min20AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (25-Jun-2025)
Product Overview
The 02-08-2006 is a MLX™ male pin Crimp Terminal made of phosphor bronze with tin plated finish. This 42023 series male crimp terminal accepts 20 to 14AWG wire. It is suitable for use with MLX™ power connectors.
Applications
Power Management, Commercial, Consumer Electronics, Industrial, Communications & Networking, Automotive, Automation & Process Control
Technical Specifications
Product Range
MLX 42023 Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
20AWG
SVHC
No SVHC (25-Jun-2025)
Contact Gender
Pin
Wire Size AWG Max
14AWG
For Use With
Molex MLX 42021 & 42022 Series Plug & Receptacle Housing Connectors
Contact Material
Phosphor Bronze
