03-06-1011

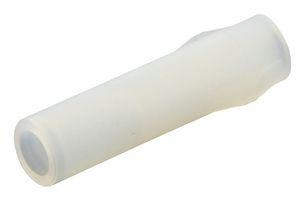

The 03-06-1011 is a 1-way 1-row 0.062-inch standard pin and socket Receptacle Housing made of nylon. It mates with 03-06-2011 plug housing. The housing is suitable for power and wire-to-wire applications. This 1625 series receptacle housing can be used with 1561, 4559, 4529, 2190, 2189, 1787, 1855 female crimp terminals, 1560, 1786, 1854 male crimp terminals, 1778 male PC tail terminals and 1779 female PC tail terminals. Nylon housings and robust terminal design create a durable, long lasting product.

• Natural color
• UL94V-2 Flammability rating
• Secure mating of the housings
• Polarized to mating part
• 5A Maximum current per contact

Applications

Power Management, Consumer Electronics, Computers & Computer Peripherals, Communications & Networking
