19070-0040

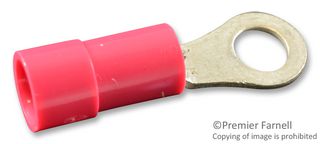

Ring Tongue Terminal, M3.5, #6, 18 AWG, 0.8 mm², InsulKrimp 19070 Series, Red
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No19070-0040
Newark Part No.01E8918
Product RangeInsulKrimp 19070 Series
Also Known AsAA-232-06X, GTIN UPC EAN: 800753069022
Technical Datasheet
3,084 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.136 |
| 10+ | $0.136 |
| 25+ | $0.126 |
| 50+ | $0.126 |
| 100+ | $0.126 |
| 250+ | $0.126 |
| 500+ | $0.126 |
| 1000+ | $0.117 |
Price for:Each
Minimum: 1
Multiple: 1
$0.14
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No19070-0040
Newark Part No.01E8918
Product RangeInsulKrimp 19070 Series
Also Known AsAA-232-06X, GTIN UPC EAN: 800753069022
Technical Datasheet
Stud Size - MetricM3.5
Stud Size - Imperial#6
Stud Size - Imperial6
Wire Size AWG Max18AWG
Conductor Area CSA0.8mm²
Product RangeInsulKrimp 19070 Series
Insulator ColourRed
Insulator MaterialPVC (Polyvinylchloride)
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 19070-0040 is a ring tongue terminal made of copper with tin plated finish. The InsulKrimp™19070 series terminal comes with a red PVC insulated closed barrel. It accepts 18 to 22AWG wire.
- UL94V-0 flammability rating
Applications
Industrial
Technical Specifications
Stud Size - Metric
M3.5
Stud Size - Imperial
6
Conductor Area CSA
0.8mm²
Insulator Colour
Red
SVHC
No SVHC (21-Jan-2025)
Stud Size - Imperial
#6
Wire Size AWG Max
18AWG
Product Range
InsulKrimp 19070 Series
Insulator Material
PVC (Polyvinylchloride)
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
