50148-8100
Contact, Mizu-P25™ Miniature Waterproof, Mizu-P25 50148 Series, Socket, Crimp, 20 AWG

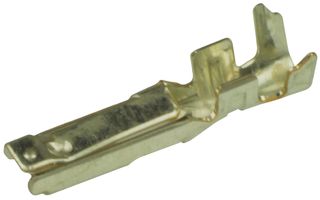

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No50148-8100
Newark Part No.57H2148
Product RangeMizu-P25 50148 Series
Also Known AsGTIN UPC EAN: 800753347649
Technical Datasheet
26,428 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.354 |
| 10+ | $0.325 |
| 25+ | $0.324 |
| 50+ | $0.324 |
| 100+ | $0.324 |
| 250+ | $0.299 |
| 500+ | $0.299 |
| 1000+ | $0.299 |
Price for:Each
Minimum: 1
Multiple: 1
$0.35
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No50148-8100
Newark Part No.57H2148
Product RangeMizu-P25 50148 Series
Also Known AsGTIN UPC EAN: 800753347649
Technical Datasheet
Product RangeMizu-P25 50148 Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max20AWG
Contact PlatingTin Plated Contacts
For Use With-000
Wire Size AWG Min22AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 50148-8100 is a Crimp Terminal made of phosphor bronze with tin plated finish. The 50148 series female terminal/socket contact accepts 20 to 22AWG wire. It is suitable for use with Mizu-P25™ 2.5mm pitch waterproof wire-to-wire receptacle housing.
- 125V Maximum rated voltage
Applications
Industrial, Automotive, LED Lighting, Consumer Electronics, Sensing & Instrumentation, HVAC
Technical Specifications
Product Range
Mizu-P25 50148 Series
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
22AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Socket
Wire Size AWG Max
20AWG
For Use With
-000
Contact Material
Phosphor Bronze
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
