504622-3010-TR750
Mezzanine Connector, Header, 0.35 mm, 2 Rows, 30 Contacts, Surface Mount, Copper Alloy

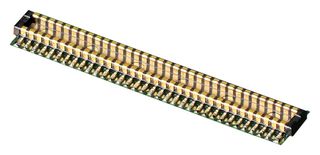

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No504622-3010-TR750
Newark Part No.28Y7487
Product RangeSlimStack 504622 Series
Also Known AsGTIN UPC EAN: 887191688367
Technical Datasheet
2,250 In Stock
Delivery in 2-3 Business days(Supplier Direct Ship)
Order before 8pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 750+ | $0.736 |
| 1500+ | $0.701 |
| 3000+ | $0.688 |
| 4500+ | $0.675 |
| 7500+ | $0.663 |
Price for:Each (Supplied on Full Reel)
Minimum: 750
Multiple: 750
$552.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No504622-3010-TR750
Newark Part No.28Y7487
Product RangeSlimStack 504622 Series
Also Known AsGTIN UPC EAN: 887191688367
Technical Datasheet
Mezzanine Connector TypeHeader
Product RangeSlimStack 504622 Series
Pitch Spacing0.35mm
No. of Rows2Rows
No. of Contacts30Contacts
Connector MountingSurface Mount
Contact PlatingGold Plated Contacts
Contact MaterialCopper Alloy
SVHCNo SVHC (16-Jul-2019)
Product Overview
The 504622-3010 is a 30-position 2-row SlimStack™ SSB6 vertical surface mount Board-to-Board Plug with gold-plated copper alloy contacts. The SlimStack™ high-speed micro-miniature board-to-board stacking connector with speed up to 20Gbps and pitch size of 0.35mm provide space-saving design flexibility.
- PCB retention
- Maximum current per contact is 0.3A
- Maximum voltage is 50VAC/DC
Applications
Automotive, Consumer Electronics, Data / Computing, Industrial, Medical, Portable Devices
Technical Specifications
Mezzanine Connector Type
Header
Pitch Spacing
0.35mm
No. of Contacts
30Contacts
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (16-Jul-2019)
Product Range
SlimStack 504622 Series
No. of Rows
2Rows
Connector Mounting
Surface Mount
Contact Material
Copper Alloy
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (16-Jul-2019)
