505072-0101

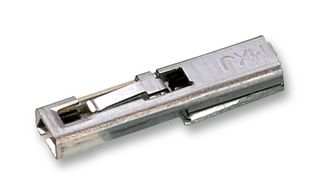

Lighting Connector, TermiMate 505072 Series, 1 Contacts, Receptacle, Surface Mount
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No505072-0101
Newark Part No.01AH8537
Product RangeTermiMate 505072 Series
Technical Datasheet
No Longer Available
Product Information
ManufacturerMOLEX
Manufacturer Part No505072-0101
Newark Part No.01AH8537
Product RangeTermiMate 505072 Series
Technical Datasheet
Product RangeTermiMate 505072 Series
No. of Contacts1Contacts
Pitch Spacing-
Contact Termination TypeSurface Mount
No. of Rows-
Connector MountingPCB Mount
Contact PlatingTin Plated Contacts
Contact MaterialCopper Alloy
SVHCNo SVHC (27-Jun-2024)
Alternatives for 505072-0101
1 Product Found
Technical Specifications
Product Range
TermiMate 505072 Series
Gender
Receptacle
Contact Termination Type
Surface Mount
Connector Mounting
PCB Mount
Contact Material
Copper Alloy
No. of Contacts
1Contacts
Pitch Spacing
-
No. of Rows
-
Contact Plating
Tin Plated Contacts
SVHC
No SVHC (27-Jun-2024)
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
