63828-0200

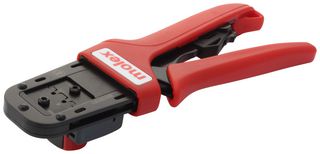

Crimp Tool, Ratchet, Molex Micro-Fit 3.0 43030, 43031 & 45807 Series 18AWG Socket Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No63828-0200
Newark Part No.34AC0457
Product RangeMicro-Fit 3.0 207129 Series
Technical Datasheet
8 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $445.250 |
| 5+ | $411.970 |
| 10+ | $398.690 |
| 25+ | $381.920 |
Price for:Each
Minimum: 1
Multiple: 1
$445.25
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No63828-0200
Newark Part No.34AC0457
Product RangeMicro-Fit 3.0 207129 Series
Technical Datasheet
Crimp Tool TypeRatchet
For Use WithMolex Micro-Fit 3.0 43030, 43031 & 45807 Series 18AWG Socket Contacts
Product RangeMicro-Fit 3.0 207129 Series
SVHCTo Be Advised
Product Overview
63828-0200 is a 207129 series hand crimp tool for Micro-Fit 3.0 female crimp terminals, 0.75mm² and 18AWG (UL1061) wires. A precision user-friendly terminal locator with wire stop holds terminals in the proper crimping position. Dies and locator from this tool can be used in the battery-powered tool 63816-0270 (110V) or 63816-0280 (220V) with the use of the 63816-0800 crimp head.
- A full cycle ratcheting hand tool ensures complete crimps
- Ergonomic soft grip handles for comfortable crimping
- Tool is IPC/WHMA-A-620 Class 2 compliant
Technical Specifications
Crimp Tool Type
Ratchet
Product Range
Micro-Fit 3.0 207129 Series
For Use With
Molex Micro-Fit 3.0 43030, 43031 & 45807 Series 18AWG Socket Contacts
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
