90131-0134

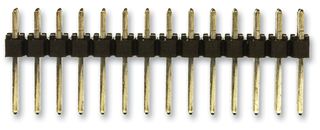

Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 28 Contacts, Through Hole Straight
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No90131-0134
Newark Part No.25M5903
Product RangeC-Grid III 90131 Series
Also Known AsGTIN UPC EAN: 800753704800
Your Part Number
Technical Datasheet
Available to Order
Delivery estimated post order confirmations.You will be charged on dispatch.
| Quantity | Price |
|---|---|
| 1+ | $1.62 |
Price for:Each
Minimum: 3000
Multiple: 1
$4,860.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No90131-0134
Newark Part No.25M5903
Product RangeC-Grid III 90131 Series
Also Known AsGTIN UPC EAN: 800753704800
Technical Datasheet
Connector SystemsWire-to-Board
Pitch Spacing2.54mm
No. of Rows2Rows
No. of Contacts28Contacts
Contact Termination TypeThrough Hole Straight
Product RangeC-Grid III 90131 Series
Connector Shroud-
Contact MaterialBrass
Contact PlatingTin Plated Contacts
Connector Type-
SVHCNo SVHC (27-Jun-2024)
Product Overview
The 90131-0134 is a 28-position 2-row C-Grid III™ through-hole Vertical Header with tin-plated brass contacts and a black polyester insulator.
- Stackable
- 3A Maximum current per contact
- 350V Maximum voltage
Applications
Automotive, Commercial, Consumer Electronics
Technical Specifications
Connector Systems
Wire-to-Board
No. of Rows
2Rows
Contact Termination Type
Through Hole Straight
Connector Shroud
-
Contact Plating
Tin Plated Contacts
SVHC
No SVHC (27-Jun-2024)
Pitch Spacing
2.54mm
No. of Contacts
28Contacts
Product Range
C-Grid III 90131 Series
Contact Material
Brass
Connector Type
-
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
