2N6668
Darlington Transistor, Darlington, PNP, 3 Pins

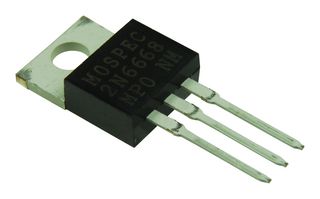

Image is for illustrative purposes only. Please refer to product description.
2,056 In Stock
Need more?
225 Delivery in 1-3 Business Days(US stock)
1831 Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $2.080 |
| 10+ | $1.680 |
| 50+ | $1.260 |
| 100+ | $1.100 |
| 500+ | $1.040 |
| 1000+ | $0.872 |
| 5000+ | $0.794 |
| 10000+ | $0.755 |
Price for:Each
Minimum: 1
Multiple: 1
$2.08
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part No2N6668
Newark Part No.98K6263
Technical Datasheet
Transistor PolarityPNP
Collector Emitter Voltage Max80V
Collector Emitter Voltage V(br)ceo80V
Power Dissipation Pd65W
Continuous Collector Current10A
Transition Frequency-
Power Dissipation65W
DC Collector Current10A
RF Transistor CaseTO-220
No. of Pins3Pins
DC Current Gain hFE20000hFE
Transistor Case StyleTO-220
Transistor MountingThrough Hole
Operating Temperature Max150°C
DC Current Gain hFE Min20000hFE
Product Range-
Qualification-
MSL-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 2N6668 is a PNP medium-power Darlington Transistor designed for general-purpose amplifier and low-speed switching applications.
- 2V Maximum collector-emitter saturation voltage VCE(sat) @ IC = 5A
- 3000 @ IC = 4A DC current gain hFE
- -65 to 150°C Operating junction temperature range
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Power Management, Industrial
Technical Specifications
Transistor Polarity
PNP
Collector Emitter Voltage V(br)ceo
80V
Continuous Collector Current
10A
Power Dissipation
65W
RF Transistor Case
TO-220
DC Current Gain hFE
20000hFE
Transistor Mounting
Through Hole
DC Current Gain hFE Min
20000hFE
Qualification
-
SVHC
No SVHC (21-Jan-2025)
Collector Emitter Voltage Max
80V
Power Dissipation Pd
65W
Transition Frequency
-
DC Collector Current
10A
No. of Pins
3Pins
Transistor Case Style
TO-220
Operating Temperature Max
150°C
Product Range
-
MSL
-
Technical Docs (2)
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
