MP-R19-038-01-002621000

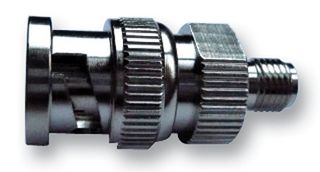

RF / Coaxial Adapter, SMA, Jack, BNC, Plug, Straight Adapter, 50 ohm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP-R19-038-01-002621000
Newark Part No.81R3159
Technical Datasheet
1,602 In Stock
Need more?
34 Delivery in 1-3 Business Days(US stock)
1568 Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $6.310 |
| 10+ | $5.800 |
| 25+ | $5.440 |
Price for:Each
Minimum: 1
Multiple: 1
$6.31
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP-R19-038-01-002621000
Newark Part No.81R3159
Technical Datasheet
Convert From Coax TypeSMA
Convert From GenderJack
Convert To Coax TypeBNC
Convert To GenderPlug
Adapter Body StyleStraight Adapter
Impedance50ohm
Connector TypeSMA Coaxial
Product Range-
SVHCLead
Product Overview
The R19-038-01-002621000 from Multicomp Pro is a straight SMA jack to BNC plug adapter.
- Brass with nickel (100?" minimum) plated body
- Beryllium copper with gold plated centre contact
- PTFE insulator
- Operating junction temperature range from -20°C to 80°C
- Connector interface in accordance MIL-STD-348 A standard
- Maximum working voltage is 500V
- Frequency range from DC to 4GHz
- Impedance is 50 ohm
Applications
Industrial, RF Communications, Communications & Networking
Technical Specifications
Convert From Coax Type
SMA
Convert To Coax Type
BNC
Adapter Body Style
Straight Adapter
Connector Type
SMA Coaxial
SVHC
Lead
Convert From Gender
Jack
Convert To Gender
Plug
Impedance
50ohm
Product Range
-
Technical Docs (1)
Alternatives for MP-R19-038-01-002621000
2 Products Found
Associated Products
8 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
