789888-01-DEMO

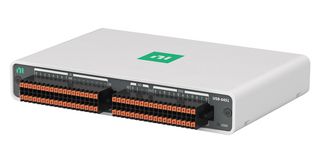

789888-01-DEMO is a 20bit, 1Ms/s/ch (16AI, 2 AO, 16 DIO) mioDAQ, USB-6451 multifunction I/O device (demo). The USB-6451 is a USB type-C bus powered mioDAQ device with analog I/O, digital I/O and four counters. It features 8 simultaneous sampling analog input channels with four input range settings from ±200mV to ±10V and analog output channels that can output ±10V with update rates of 250ks/s/ch. Additionally, the USB-6451 digital I/O channels can function as static input or output channels, hardware-timed channels up to 10MHz, or as triggers, clocks or I/O for the four onboard counters. The USB-6451 also supports Flex Logger Lite, free data acquisition software from NI and includes documented APIs and examples for LabView, Python, C/C++ and more.

• Considered “Used” condition, this product has been utilized for the purpose of demonstration only
• Near new condition, with all original accessories showing only slight signs of handling
• Engineers use mioDAQ to take ±10V measurements build electromechanical test systems
• 2x 36-position spring terminals
• 1.3mV analogue input absolute accuracy
• Dimension is 116.58mm x 176.78mm x 30.22mm

Contents

NI mioDAQ model USB-6451, One 2m USB-C to USB-C cable with locking screw, Spring terminals with back shells for strain relief, NI screwdriver.
