781156-01

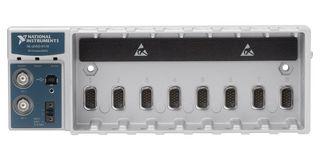

781156-01 is a cDAQ-9178 8‑slot, CompactDAQ USB chassis designed for small, portable sensor measurement systems. The chassis provides the plug-and-play simplicity of USB to sensor and electrical measurements. It also controls the timing, synchronization, and data transfer between C Series I/O modules and an external host. Users can use this chassis with a combination of C Series I/O modules to create a mix of analog I/O, digital I/O, and counter/timer measurements. The cDAQ-9178 also has four 32bit general-purpose counters/timers. Users can access these counters, as well as share clocks and triggers, through two built-in BNC connectors.

• Input voltage range from 9 to 30V
• Maximum required input power is 15W
• USB 2.0 Hi-speed USB specification
• Dimension (unloaded) is 10inch x 3.47inch × 1.31inch
• Operating temperature range from -20°C to 55°C (IEC-60068-2-1 and IEC-60068-2-2)
• IP30 ingress protection
• Meets IEC 61010-1, EN 61010-1, UL 61010-1, CSA 61010-1

Notes

Users must use a National Electric Code (NEC) Class 2 power source with the NI cDAQ-9178 chassis.
