785971-01

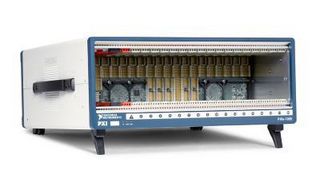

785971-01 is a PXIe-1095 PXIe, 18-slot (5 hybrid slots, 11 PXI express slots, 1 PXI express system timing slot), up to 24GB/s PXI chassis. It features a high-bandwidth backplane and up to 82W of power and cooling in every slot to meet a wide range of high-performance test and measurement application needs. The chassis incorporates two hot-swappable power supplies to improve the mean time to repair (MTTR) of the PXI system; it also offers a timing and synchronization option that includes a built-in oven-controlled crystal oscillator (OCXO) for increased clock accuracy and external clock and trigger routing. It accepts PXI Express modules in every slot and supports standard PXI hybrid-compatible modules in up to five slots.

• Operating voltage range from 90 to 264VAC
• Operating frequency range from 47 to 440Hz
• Ambient temperature range from 0°C to 55°C (≤58W cooling capacity per slot)
• Approved by IEC 61010-1, EN 61010-1, UL 61010-1, CSA C22.2 No. 61010-1 safety compliance standards
• 6.97" height, 17.54" width, 18.25" depth
