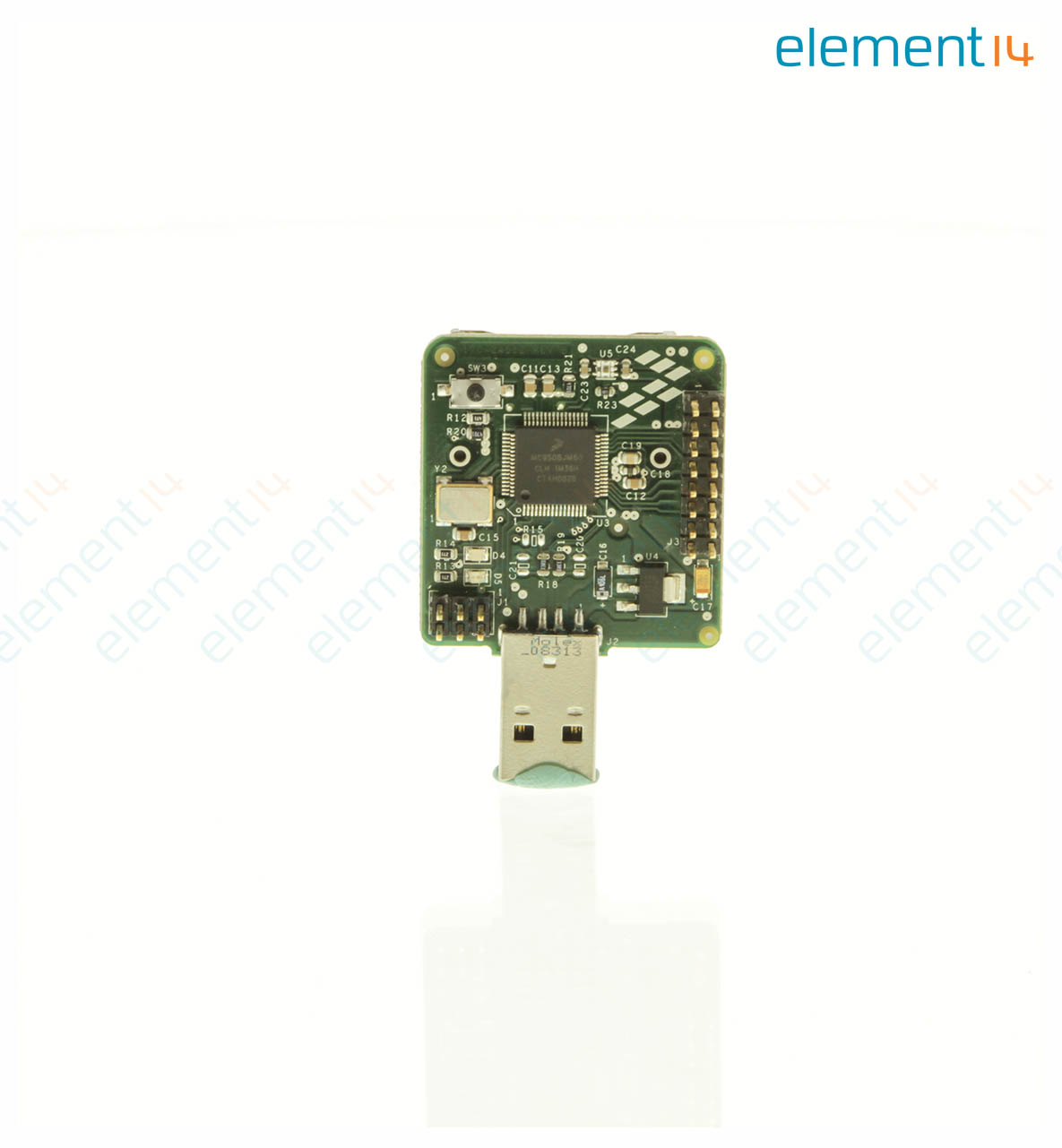

Evaluation Board, SD Card Reader, Flexis JM Board, MCF51


The actual product may differ from image shown

Manufacturer Part No:
Newark Part No.:
Technical Datasheet:
See all Technical Docs

Product Overview

The DEMOFLEXISJMSD is a SD card reader reference design. It allows users to read and write files stored in a SD card from a PC or another USB host enabled system through the full speed USB module included. The SD card interface is based on SPI protocol. Mass storage device class is used to implement the high level communication between the host application and data memory. The SD card reader reference design shows how easy are to interface a SD card to an 8bit MCU with a SPI module. This design is an alternative Flexis JM family development board. The user can exchange a MCF51JM128 for a MC9S08JM60 (pin to pin compatible).
  • USB connectivity
  • Light sensor
  • SD card socket
  • Three LED (one power and two user LEDs)
  • One push button
  • Expansion header with access to SPI, RGPIO, SCI etc
  • 8bit to 32bit compatible footprint for JM family (S08 included)


Medical, Industrial, Consumer Electronics, Building Automation, Communications & Networking, Lighting


PWA, DEMOFLEXISJMSD, Technical Information, Warranty card, Quick setup guide.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×




SD Card Reader


ColdFire v1

Flexis - MCF51JM

Board, guide, Docs
