M52211EVB

The M52211EVB evaluation board provides an excellent vehicle for embarking on a high performance embedded design of the MCF5221x family of ColdFire microprocessors. With USB 2.0 on the go connectivity, breakout connectors for serial interfaces, and support for a Zigbee ready daughter card, this complete package includes all the components for realizing a MCF5221x design quickly and easily. This cost efficient evaluation kit offers an impressive array of complementary software. Included with the evaluation kit is a fully licensed, complimentary special edition of the CodeWarrior development studio for ColdFire architectures for development of applications up to 128Kbytes code size, as well as a host of ther low cost and professional tools from leading 3rd party tool vendors. The EVB comes fitted with an 80MHz MCF52211 microcontroller with 128K byte internal flash. The MCF52211 MCU has a superset of the same functional modules and interfaces as those on the other devices supported.

• Three UART interface
• Supports Zigbee ready RF daughter card
• Breakout connector for serial interfaces (including I2C, QSPI, GPIO, and ADC)
• LEDs for power up indication, general purpose I/O, and timer output signals
• Potentiometer and light sensor dedicated to the ADC
• CAN transceiver interface
• BDM/JTAG interface

Applications

Industrial, Security, Wireless, Automotive

Contents

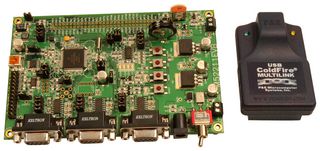

M52211EVB Single Board Computer, M52211EVB User's Manual, One RS232 communication cable, One BDM (Background Debug Mode)"wiggler" cable, MCF52211UM ColdFire Integrated Microprocessor User Manual, coldFire Programmers Reference Manual.
