MPC564AKIT176
Evaluation Board, MCU, 2 CAN/LIN Channels, Expansion Connectors, Debug Ports, 32bit

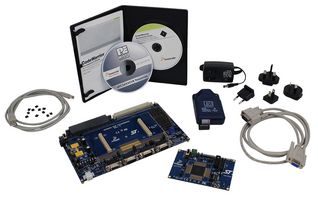

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
Product Information
ManufacturerNXP
Manufacturer Part NoMPC564AKIT176
Newark Part No.67W2519
Technical Datasheet
Silicon ManufacturerNXP
No. of Bits32bit
Silicon Family NameQorivva
Core ArchitecturePower Architecture
Core Sub-ArchitecturePower Architecture
Silicon Core NumberMPC564xA
Kit ContentsEval Board MPC564xA, Adapter Board, CD–ROM, USBvML–PPCNEXUS Interface & USB Cable, Warranty Card
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
MPC564AKIT176 is an evaluation kit for Qorivva MPC564xA, XPC56xxMB2 motherboard and MPC564AADPT176 mini-module. This evaluation system supporting the NXP® MPC564xA microprocessors.
- A 12VDC power supply input barrel connector
- 2 CAN channels with jumper enable
- 2 LIN channels with jumper enable
- 1 SCI channel with jumper enables
- 2 FlexRay channels with jumper enable
- 4 user push buttons with jumper enables and polarity selection
- 4 user LED's with jumper enables
- 1 potentiometer for analog voltage input
- XPC564AADPT can be used as a standalone board by providing external 5V power supply input
- XPC564AADPT176S has socket for MPC564xA in 176LQFP footprint
Contents
One xPC56XXMB mother board, One xPC564AADPT176S or xPC564AADPT208S or xPC564AADPT324S mini-module, One xPC56XX resources CD-ROM, One P&E USB-ML-PPCNEXUS hardware interface cable, One USB A-to-B Cable, Warranty card.
