SJA1000T/N1,118
CAN Interface, CAN Controller, Serial, 1 Mbps, 4.5 V, 5.5 V, SOIC, 28 Pins

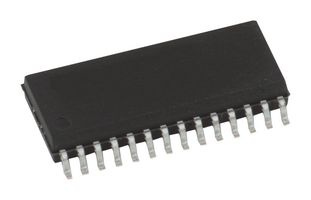

Image is for illustrative purposes only. Please refer to product description.
19 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $9.730 |
| 10+ | $7.870 |
| 25+ | $7.310 |
| 50+ | $7.000 |
| 100+ | $6.690 |
| 250+ | $6.410 |
| 500+ | $6.230 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$9.73
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNXP
Manufacturer Part NoSJA1000T/N1,118
Newark Part No.70R9096
Technical Datasheet
CAN Interface IC TypeCAN Controller, Serial
Data Rate Max1Mbps
Supply Voltage Min4.5V
Supply Voltage Max5.5V
IC Case / PackageSOIC
No. of Pins28Pins
No. of Channels1Channels
No. of Drivers1Drivers
No. of Receivers1Receivers
Operating Temperature Min-40°C
Operating Temperature Max125°C
Product Range-
Qualification-
SVHCNo SVHC (27-Jun-2018)
Product Overview
The SJA1000T/N1 is a stand-alone CAN Controller for the controller area network (CAN) used within automotive and general industrial environments. It is the successor of the CAN controller (BasicCAN) from Philips semiconductors. Additionally, a new mode of operation is implemented (PeliCAN) which supports the CAN 2.0B protocol specification.
- Supports 11-bit identifier as well as 29-bit identifier
- Error counters with read/write access
- Programmable error warning limit
- Last error code register
- Error interrupt for each CAN-bus error
- Arbitration lost interrupt with detailed-bit position
- Bit rates up to 1Mbps
- PeliCAN mode extensions - Error counters with read/write access & programmable error warning limit
Applications
Industrial
Warnings
ESD sensitive device, take proper precaution while handling the device.
