WB28SHM
Wire Wrap Tool, Bit, Modified, 28AWG

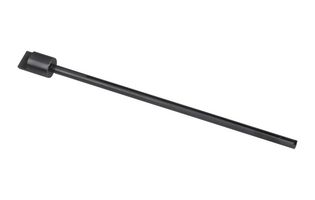

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 2 week(s)
| Quantity | Price |
|---|---|
| 1+ | $77.000 |
Price for:Each
Minimum: 10
Multiple: 10
$770.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOK INDUSTRIES
Manufacturer Part NoWB28SHM
Newark Part No.10F7517
Technical Datasheet
Wrap Tool TypeBit
Wire Wrap StyleModified
Terminal Diagonal Min0.031"
Terminal Diagonal Max0.035"
Wire Size (AWG)28AWG
Wire Size AWG Max28AWG
Product Range-
SVHCNo SVHC (19-Jan-2021)
Product Overview
The WB28SHM is a Wire Wrapping Bit provides 1.5 to 2 turns of insulation. This tool is recommended for 0.025-inch square terminals on 0.100-inch center to center of the pins. Fully compatible with any make or model wire wrapping tool.
- 0.75" Terminal hole
- 0.066" Effective radius
- 0.030" (0.76mm) Maximum insulation diameter
Applications
Maintenance & Repair
Technical Specifications
Wrap Tool Type
Bit
Terminal Diagonal Min
0.031"
Wire Size (AWG)
28AWG
Product Range
-
Wire Wrap Style
Modified
Terminal Diagonal Max
0.035"
Wire Size AWG Max
28AWG
SVHC
No SVHC (19-Jan-2021)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (19-Jan-2021)
