TC-K-1/8NPT-U-72
Thermocouple, K, 0 °C, 650 °C, Stainless Steel, 72 ", 1.83 m

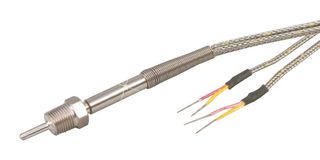

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMEGA
Manufacturer Part NoTC-K-1/8NPT-U-72
Newark Part No.34AC6489
Product RangeTC-K-NPT Series
Your Part Number
Technical Datasheet
28 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $109.670 |
Price for:Each
Minimum: 1
Multiple: 1
$109.67
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerOMEGA
Manufacturer Part NoTC-K-1/8NPT-U-72
Newark Part No.34AC6489
Product RangeTC-K-NPT Series
Technical Datasheet
Thermocouple TypeK
Measured Temperature Min0°C
Measured Temperature Max650°C
Sensor Body MaterialStainless Steel
Lead Length - Imperial72"
Lead Length - Metric1.83m
Probe Length - Imperial0.5"
Probe Length - Metric12.7mm
Probe Diameter - Imperial0.125"
Probe Diameter - Metric3.18mm
InsulationFiberglass
Thermocouple TerminationWire Leaded
Thermocouple Wire Standard-
Thermocouple ShieldingShielded
Product RangeTC-K-NPT Series
SVHCNo SVHC (17-Jan-2022)
Product Overview
TC-K-1/8NPT-U-72 is a TC-K-NPT series, Type K, ungrounded pipe plug thermocouple probe with 1/8NPT fitting and stripped wire leads.
- Rugged 304 SS design with strain relief spring
- 2m (80") stainless steel braid over fiberglass lead wire
- Withstands pressures to 2500psi at ambient temperatures
- 72" long extension leads
- Ungrounded junction is ideal for vessel application, pressurized chambers and pipelines
- Exposed junction designed for air temperature measurement and monitoring of gas streams
- Probe temperature range to 650°C
- Transition joint/cable temperature range to 480°C
Technical Specifications
Thermocouple Type
K
Measured Temperature Max
650°C
Lead Length - Imperial
72"
Probe Length - Imperial
0.5"
Probe Diameter - Imperial
0.125"
Insulation
Fiberglass
Thermocouple Wire Standard
-
Product Range
TC-K-NPT Series
Measured Temperature Min
0°C
Sensor Body Material
Stainless Steel
Lead Length - Metric
1.83m
Probe Length - Metric
12.7mm
Probe Diameter - Metric
3.18mm
Thermocouple Termination
Wire Leaded
Thermocouple Shielding
Shielded
SVHC
No SVHC (17-Jan-2022)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
