TJ36-CASS-116G-6-SB-SMPW-M
Thermocouple, K, 0 °C, 900 °C, 304 Stainless Steel, 40 ", 1.01 m

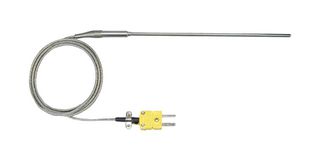

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMEGA
Manufacturer Part NoTJ36-CASS-116G-6-SB-SMPW-M
Newark Part No.30AC8486
Product RangeTJ36-SB Series
Technical Datasheet
9 In Stock
Ship in 2-3 days(Supplier Direct Ship)
Order before 8pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $102.600 |
Price for:Each
Minimum: 1
Multiple: 1
$102.60
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMEGA
Manufacturer Part NoTJ36-CASS-116G-6-SB-SMPW-M
Newark Part No.30AC8486
Product RangeTJ36-SB Series
Technical Datasheet
Thermocouple TypeK
Length150mm
Measured Temperature Min0°C
External Diameter1.59mm
Probe Body MaterialStainless Steel
Measured Temperature Max900°C
Sensor Body Material304 Stainless Steel
Lead Length - Imperial40"
Lead Length - Metric1.01m
Probe Length - Imperial6"
Probe Length - Metric152.4mm
Probe Diameter - Imperial0.06"
Probe Diameter - Metric1.52mm
Insulation-
Thermocouple TerminationMiniature Connector
Thermocouple Wire StandardANSI
Thermocouple ShieldingShielded
Product RangeTJ36-SB Series
SVHCNo SVHC (17-Jan-2022)
Product Overview
Rugged thermocouple transition joint probe with stainless steel braid over PFA lead wire and miniature male connector/cable clamp.
- Thermocouple probe with SS overbraid cable & mini connector
- Stainless steel overbraid resists abrasions and cuts, yet remains flexible
Technical Specifications
Thermocouple Type
K
Measured Temperature Min
0°C
Probe Body Material
Stainless Steel
Sensor Body Material
304 Stainless Steel
Lead Length - Metric
1.01m
Probe Length - Metric
152.4mm
Probe Diameter - Metric
1.52mm
Thermocouple Termination
Miniature Connector
Thermocouple Shielding
Shielded
SVHC
No SVHC (17-Jan-2022)
Length
150mm
External Diameter
1.59mm
Measured Temperature Max
900°C
Lead Length - Imperial
40"
Probe Length - Imperial
6"
Probe Diameter - Imperial
0.06"
Insulation
-
Thermocouple Wire Standard
ANSI
Product Range
TJ36-SB Series
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
